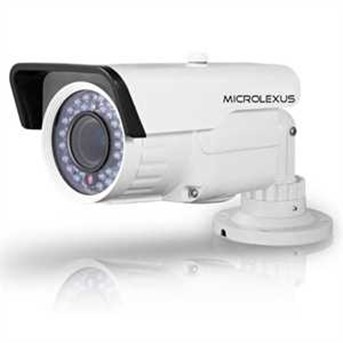

Detail Microlexus MCO-1582VFIR
• 1/ 3" DIS
• True Day/ Night
• 600 TVL Horizontal Resolution
• 2.8 - 12 mm / F1.4 Vari-focal Lens
• 40m IR Distance
• Wide Operating Temperature Range
Manufacturer: Microlexus
Image Sensor: 1/ 3” DIS
Signal System: PAL/ NTSC
Effective Pixels: 720( H) × 480( V)
Min. Illumination: 0.1Lux @ ( F1.2, AGC ON) , 0 Lux with IR
0.14Lux @ ( F1.4, AGC ON) , 0 Lux with IR
Shutter Time: 1/ 25( 1/ 30) s to 1/ 15, 000 s
Lens: 2.8-12 mm @ F1.4
Angle of view: 92° - 27.2°
Lens Mount: Æ 14
Adjustment Range: Pan: 0 - 360° , Tilt: 0 - 90° , Rotation: 0 - 360°
Day& Night: IR cut filter with auto switch
Horizontal Resolution: 600TVL
Synchronization: Internal Synchronization
Video Output: 1Vp-p Composite Output ( 75© / BNC)
S/ N Ratio: More than 52dB
BLC: On
General
Operating Conditions: -40 ° C - 60 ° C ( -40 ° F - 140 ° F)
Humidity 90% or less ( non-condensing)
Power Supply: 12 V DC± 10%
Power Consumption: Max. 4 W( Max. 6.5 W with IR cut filter on)
Weather Proof: IP66
IR Range: Approx 30 to 40 meters
Dimension: 88 × 89.4 × 257.7mm( Æ 3.46” x 3.52” x 10.15” )
Weight: 1350g ( 2.97 lbs)
